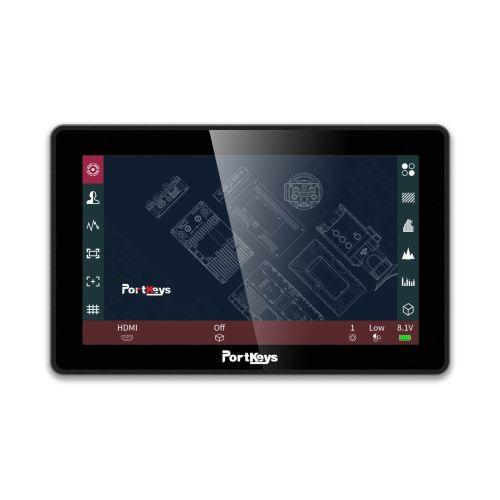

Portkeys BM5 III 5.5 Inch, FHD, Sony, Canon, Panasonic, BMD, and Z CAM E2 Camera Control, 3D LUT SDI Support, 2200 Nits

649,00 €

On Order - Ships in 7–10 working days

Description :

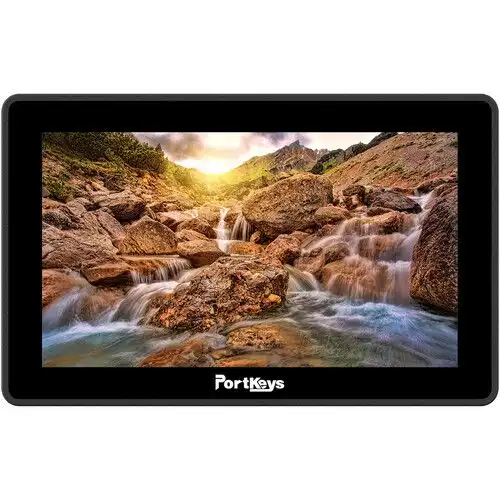

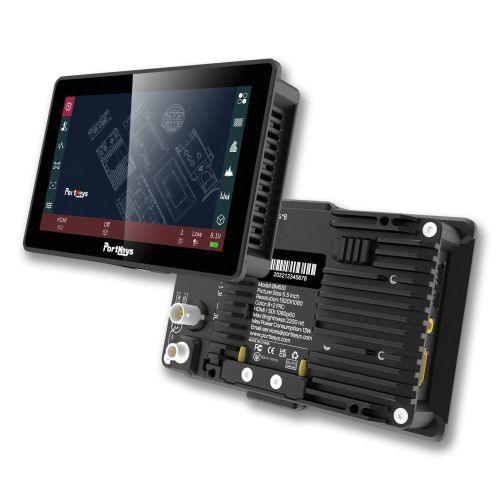

The Portkeys BM5 III is a lightweight, rugged 5.5-inch Wide Color Gamut on-camera monitor with 2,200nits of brightness, HDMI/SDI video inputs, one SDI output with HDMI cross-conversion, and wired camera control capabilities.

Key features:

5.5-inch, 10-bit panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio.

Daylight-viewable with a maximum brightness of 2,200nits.

1 x 3G-SDI input, 1 x HDMI input, 1 x 3G-SDI output with cross-conversion.

Professional monitoring tools: Waveform, Vectorscope, Peaking, ARRI False Color.

3D LUT monitoring and 3D LUT SDI output capabilities.

Wired camera control for Sony, Canon, Panasonic, BMD, and Z CAM E2.

TILTA Nucleus N/M wireless follow focus wired control.

Built-in Sony NP-F style battery plate.

4-pin 7.4V-24V power input for external power (D-Tap cable included).

Lightweight and rugged aluminum housing: only 351g/12.3oz.

Note:

The BM5 III does not have wireless camera control capabilities.


Overview :





Set your exposure properly and focus accurately when capturing video with the help of the BM5 III 5.5″ HDMI Touchscreen Monitor with Wired Camera Control from PORTKEYS.
This ultrabright onboard monitor features a 2200 cd/m² brightness, a 1920 x 1080 resolution display.
Durable aluminum build.
HDMI and 3G/SDI video inputs, and an SDI loop output.
It supports input up to 1080p60 from your camera.

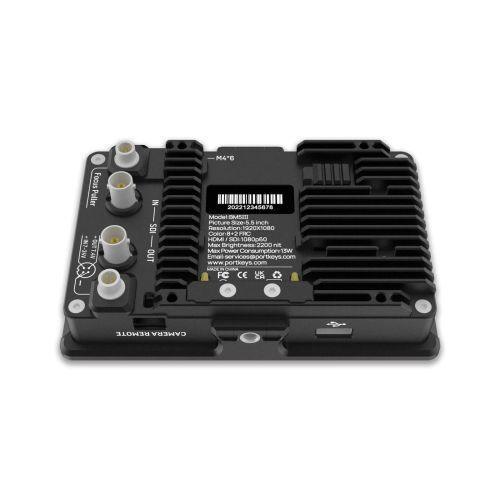

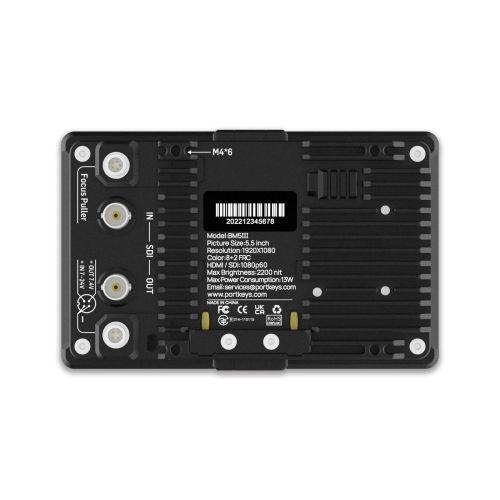

The monitor features a 4-pin power output, an L-series battery plate, and a 5-pin focus control port for direct control of a focus motor such as a Tilta Nucleus-N or Nucleus-M using an optional cable.

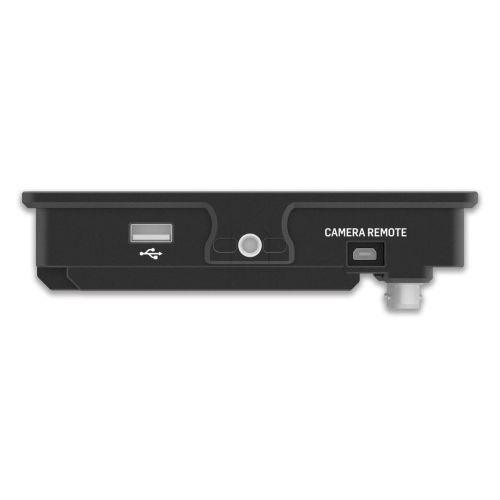

The mini-USB port can be used to control multiple camera functions using a separately available control cable on a variety of Canon, Panasonic, Z CAM, Sony, and Blackmagic Design cameras.
Wired Camera Control
On selected Sony, Canon, Panasonic, Blackmagic Design, and ZCAM E2 cameras
Wired Motor Control
The BM5 III can display the position of the Tilta Nucleus N/M and display the wireless follow focus scale
Touchscreen Control Focus
When you touch the screen of the monitor, it draws highlights around the edge of the focus, so you can focus quickly and accurately in real time without any other tools when using the RED KOMODO, Panasonic BGH1, or the ZCAM E2
2200 cd/m² High-Bright Monitor
The BM5 III offers a 2200 cd/m² ultrabright 5.5″ display with excellent color, resolution, contrast, and precise image control
Robust Design
The rugged aluminum alloy shell design is durable and lightweight, weighing only 12.6 oz yet able to withstand heavy daily operations

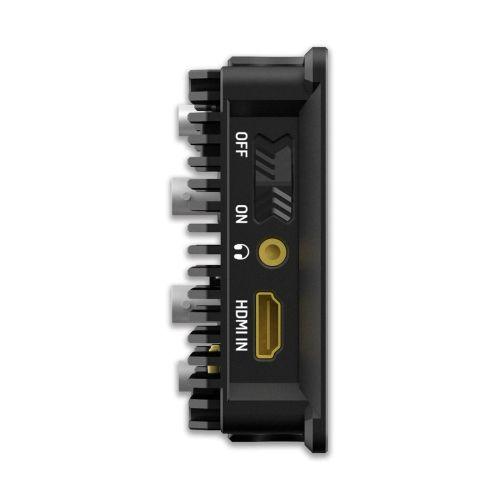

HDMI In/SDI In/Loop Out
HDMI input and SDI input and loop output ports with the ability to output a superimposed image with 3D LUT and peaking via the SDI output
Image Tools
3D LUT support with custom LUTs via USB
Peaking
False color
Luma
Waveform
Real-time eye focus
Anamorphic de-squeeze
Anamorphic lens calibration
Frame guides, crosshairs, grids
Color temperature
Brightness
Sharpness
Cropping
Check field
Zebra
Luma histogram
Custom RGB
Audio meters
HDR/HLG support



Weight1,5 kg
